Product Model: PD45S
Brand: Honeywell
Category: Barcode Printer

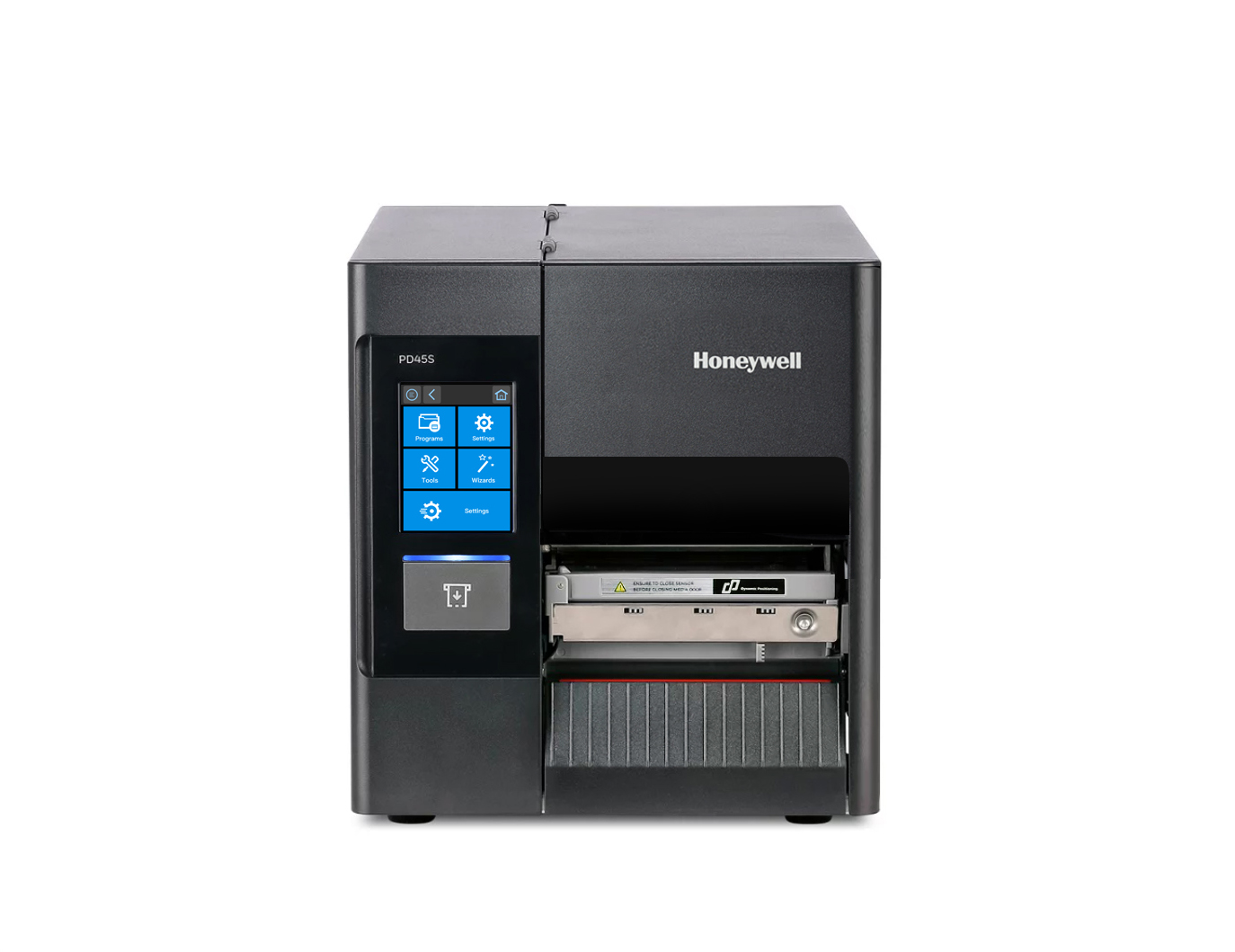

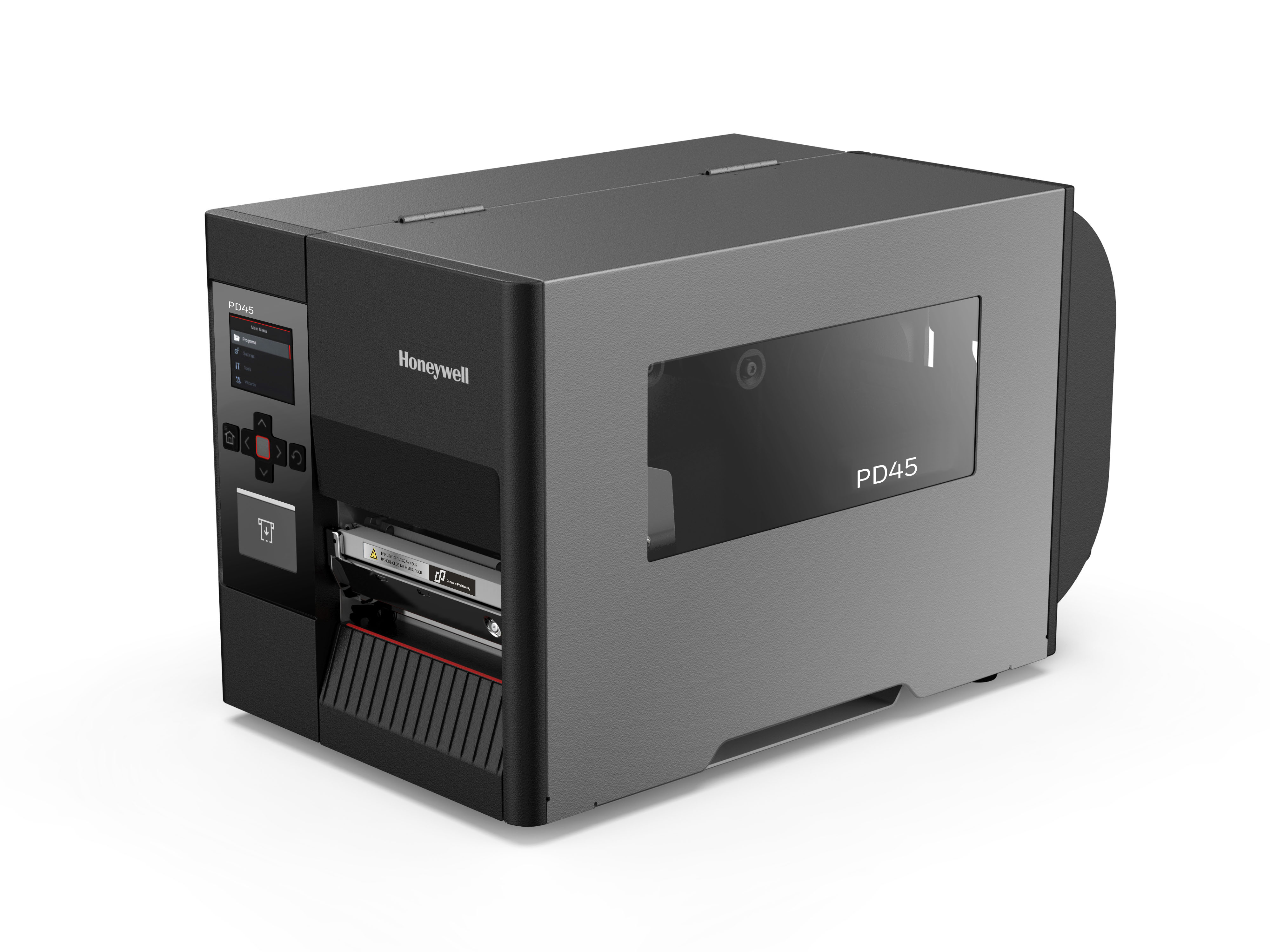

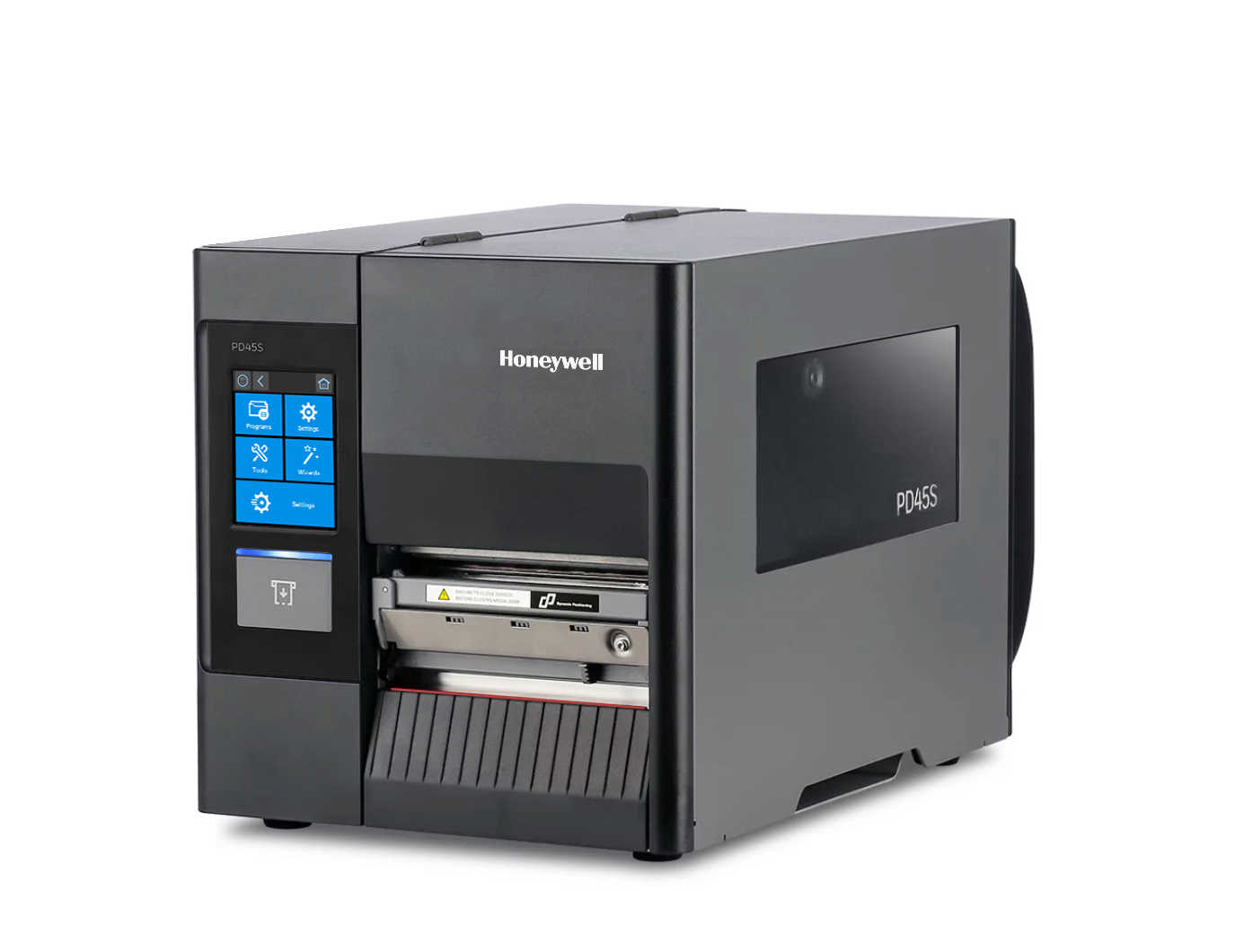

PD45S/PD45 Honeywell’s new commercial industrial printer is suited for manufacturing, retail, logistics, healthcare and government applications. With Honeywell print platform, PD45S/PD45 can be alternative to the competing printers in the market.
| Printing modes: | Direct thermal and thermal transfer Printing |
| Processors: | Arm Cortex®-A7, 800MHz 128 MB flash memory 256 MB DDR3 SDRAM Multi-GB USB storage device (FAT16/ FAT32) Built-in real-time clock |
PRINT SPECIFICATIONS
Printing resolution:
203 dpi: 8 dots/mm
300 dpi: 11.8 dots/mm
Printing speed:
203 dpi: 50 - 200mm/s (2-8ips)
300 dpi: 50 - 100mm/s (2-4ips)
Maximum width:
203 dpi: 108 mm (4.25 inches)
300 dpi: 105.7 mm (4.16 inches)
Maximum Continuous Print Length:
203 dpi: 4.8 m (15.75 ft)
300 dpi: 2.2 m (7.22 ft)
RIBBON SPECIFICATIONS
Ribbon supporting:
Inner carbon or outer carbon
Maximum roll diameter:
80 mm (3.15 inches),
about 450 m (1,476 feet)
Roll core ID: 25.4 mm (1 inch)
Max. /Min. Width (ribbon and roll core):
110/51 mm (4.33/2.0 inches)
Type:
Wax base, mixed base and resin base
Honeywell’s genuine media:
sps.honeywell.com/us/en/products/
productivity/printer-supplies
MEDIA SPECIFICATIONS
Non-continuous label paper, black label
paper, tag paper, guide hole paper, notch
paper or continuous label paper
Maximum/minimum width (label and
liner): 114/20 mm (4.5/0.79 in)
Minimum label length:
Paper tearing mode: 5.0 mm
(0.197 inches)
Cutter Mode: 38.0mm (1.5 inches)
Thickness (label and liner):
3 mil to 8.82 mil (0.076mm to 0.224mm)
Configuration:
External roll paper or folding paper
Maximum diameter of label roll:
203.2 mm (8.0 inches)
Label roll core:
76 mm (3.0 inches)/25.4mm (1.0 inches)
